SPECIAL HOBBING

Besides the traditional hobbing and gear, Tornomatic offers 'made to measure' service in order to meet all customers needs.
Thanks to our technical department support, Tornomatic can study specific projects and respond to every request.

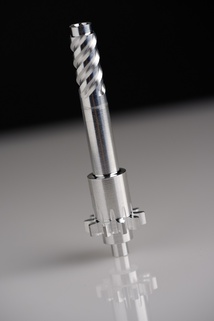

Engine Pinion

All our productions are designed to process the following materials: bronze, brass, aluminum, delrin and other plastics, bakelite cloth, stainless steel, ferrous and alloy steels.

  • Mono-spindle and twin-spindle turning

    • Max. bar diameter 74
    • Maximum length of 600/800
    • Round and extruded bars (squares, hexagons and special shapes)
    • Milling, transverse holes …
  • Multi-spindle turning

    • Minimum diameter 5, maximum diameter 38
    • Round and extruded bars (squares, hexagon and special shapes)
    • Milling, transverse holes …
  • Secondary and finishing processes

    • Secondary manufacturing processes such as automatic drilling, milling, reaming, threading.
    • Assembly, turning chuck, drilling, boring, milling, stamping, shearing, thread rolling, knurling tools and worms, lapping, Round and shoulders grinding, broaching of cylindrical bores with keyway and various profiles, finishing with vibro-finishing machine.
    • Various processing on vertical numerically controlled machining centre ISO30 with fast tool change (2" chip-chip)
  • Hobbing

    • Hobbing up to module 3 for gears and 5 for worm screws
    • Maximum diameter mm 130
    • Hobbing cylindrical gears with straight and helical teeth, worm screws
    • Skiving and pre-skiving up to module 3
